OceanView Zeus

The Zeus is OceanView’s Flagship product. Zeus uses a FOB (Fibre Optic Gyro) which not only compensates for the vessel’s movement while maintaining a stable image on the screen, it also provides a platform for Object Tracking features enabling the bridge to “track” tenders and jet skis, unidentified targets on shore or at sea day or night.

This surveillance capability of the Zeus is a major benefit for both SuperYacht and border patrol applications. The Zeus tracking system uses up to 9 different algorithms for this feature.

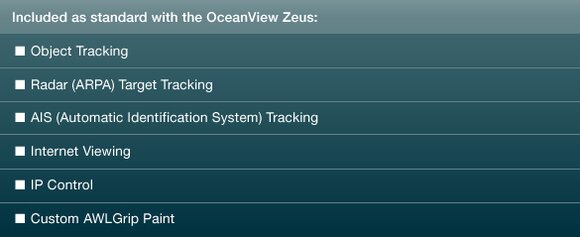

Special features:

Motion and Object tracking feature, including 8 tracking algorithms for different applications.
Radar (ARPA) & AIS (Automatic Identification System) Target Tracking
Colour LCD Touch Panel Controller and separate Joystick
- Optional additional controllers
Internet Viewing & IP Control included as standard

Standard features include:

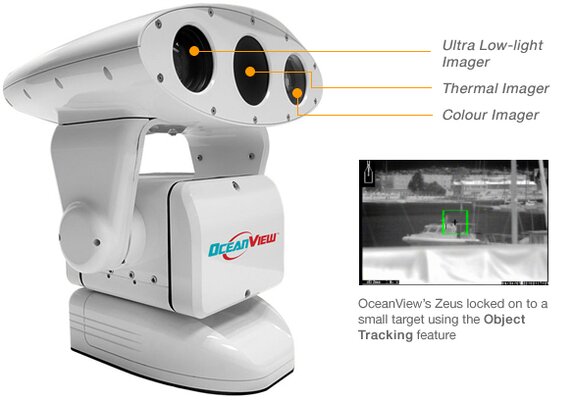

Three independently viewable images
- Thermal Imager for use in total darkness
  - Hi res 320 × 240 pixel
  - 9 Hz, 23° FOV (Optional 14° & 9° FOV)
- Low-Lux (0.00015 lux) Camera for use in poor/low light
  - 10x optical zoom
- Colour Daylight Camera
  - 312x zoom (26x optical & 12x digital)
“On screen” camera direction indicator
A quick release “docking station” mount
- Easy service access
- Makes sharing cameras between different vessels easy
“Switch” between White hot/Black hot polarity
360° continuous pan and tilt range of 71° up and 75° down

The combination provides outstanding pictures in a variety of light and environmental conditions.

The benefits of being able to detect, observe and identify different types of activity and objects in total darkness, heavy rain, smoke, daylight, or in mixed/poor lighting conditions are vast.

Applications include use on Superyachts, work boats and commercial vessels for:

Navigation/Collision & Object Avoidance
Medium – to Long-Range Threat Detection
MOB, Search and Rescue (SAR)
Security/Law Enforcement – on board or on the dockside
Shared use between vessels (see information below on the quick release ‘docking station’)

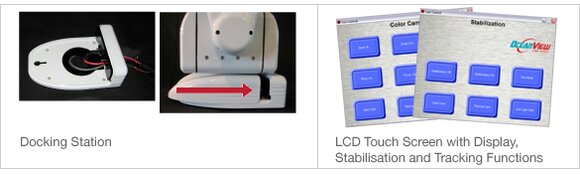

Unique to this industry, a quick release “docking station” makes sharing cameras between different vessels very easy, installation is even easier and in the unlikely event of on board service requiring a swap unit, can be quickly exchanged.

In addition to a simple Joystick controller for controlling the Pan and Tilt functions of the unit, Zeus is supplied with an easy to navigate Pilothouse LCD Touch Screen Controller. It has full functionality with all the controls literally at your finger tips.

The pan & tilt camera head is remotely mounted and has a 360° pan view and +/-50° tilt range.

The Zeus provides industry standard NTSC or PAL video output and the back lit controller is easily integrated into the bridges or control rooms of pleasure and commercial craft.

The Zeus provides industry standard NTSC or PAL video output.

For Technical Information, click below to download the Zeus Product Data Sheet.

Zeus Specification Sheet
